      hydrotechnik


















      GFM for high-temperature applications





          hydrotechnik




          High-temperature GFM data download




          Advantages at a glance




          • high accuracy and repeatability

            • operational pressure up to 630 bar

            • fitting in any position and measuring in both flow

            directions possible

            • large measuring range up to 1:200

            • application for a large viscosity range

            • test points for pressure and temperature

            • suitable for hydraulic- and other oils on mineral oil basis,

            diesel oil, fats, glue, resins, waxes, pastes, polyurethane etc.

            • option: detection of flow direction and pulse doubling









      Qualities of hydrotechnik gear flow meters type GFM





              Measuring principle
              displacement




              Viscosity range
              5 ... 500 mm²/s (cSt)




              Medium temperature
              -20 ... +160 °C




              Environmental temperature
              max. +50 °C (amplifi er)




              Storage temperature
              -20 ... +85 °C




              Output signal
              frequency




              Supply voltage Ub
              12 ... 30VDC




              Electrical measuring connector
              4 pole device connector, M12 x 1




              Protection type (EN 60529 / IEC 529)
              IP 64




              Tightening torque
              8 Nm (± 2 Nm)




              Calibration viscosity
              30 mm²/s (cSt)




              Material casing cover
              1.4305




              Material middle / bottom part
              0.7060




              Material sealings
              FKM




              Material gear wheels
              1.7131




              Suitable measuring cable
              customer-specific












              Pin assignment
              frequency





              Pin 1 = + Ub




              Pin 2 = signal




              Pin 3 = – Ub / GND




              Pin 4 = free


















              Measuring

                range
              Nonlinearity
              Geometric gear

                volume
              Allowed working

                pressure
              Impulses

                per liter
              Hydraulic connector
              Error limit*




              l/min
              of measured value
              cm³
              bar
              MPa


              of current value




              0.2 ...30.0
              ± 0.5 %
              0.609
              630
              63
              1,640
              ISO 228-G3/8
              ± 0.5 %




              0.7 ...70.0
              ± 0.4 %
              2.222
              420
              42
              450
              ISO 228-G3/4
              ± 0.4 %









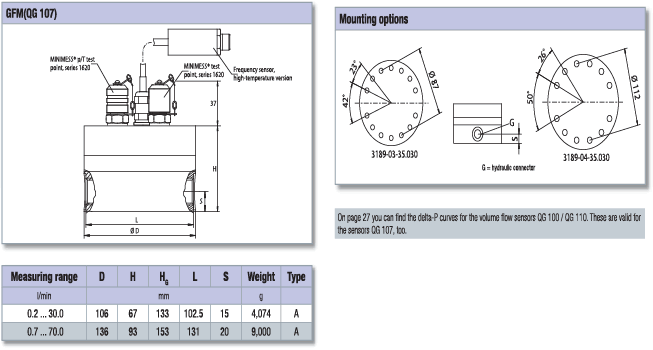

      Hydrotechnik Orders of type GFM:









              Measuring range
              GFM系
              Order number / weight




              l/min

              QG 100 (frequency)






              Order number
              weight




              0.2 ...30.0
              GFM-30
              3189-03-35.030
              3,700 g




              0.7 ...70.0
              GFM-70
              3189-04-35.030
              8,600 g








          *: for QG 100 and factory calibrated viscosity

            **: casing material AlCuMgPb F37

            ***: for QG 110 additional ± 0.2 % of fi nal value (error of f/I-converter)

            Factory standard calibration for mineral oil at 30 cSt. Other calibration viscosity optional.
