      hydrotechnik

















          Torque sensor




          Hydrotechnik in china




          Download





      Hydrotechnik Torque sensor for many applications:


      Highly accurate torque sensor, equipped with a cylindric shaft with feather keys on both ends.

            It is available for several measurement ranges and is designed for continuous rotational speed of 1,500 to 2,000 rpm.










      Hydrotechnik Torque sensor  technical data





              Measuring principle
              rotating sensor with friction ring




              Output signal
              4 ... 20 mA




              Nominal characteristic value
              2 mV/V




              Electrical measuring connector
              5 pole device connector, M16 x 0.75




               Mechanical measuring connector
              cylindric shaft with feather keys




              Protection type (EN 60529 / IEC 529)
              IP 50




              Signal type
              three wires




              Supply voltage Ub
              8 ... 24 VDC




              Current consumption
              < 50 mA




              Error limit
              0.1 % of fi nal value




              Working torque
              120 % of fi nal value




              Limit torque
              130 % of fi nal value




              Breaking torque
              250 % of fi nal value




              Factor range DIN 50100
              70 % (peak – peak)




              Maximal rotational speed
              2,000 U/min




              Twisting angle
              0.5 ° at nominal torque




              Reproducability
              ± 0.05 %




              Lifetime of brushes
              5 x 10 8 rotations




              Nominal value tolerance
              ± 0.1 %




              Environmental temperature
              -10 ... + 60 °C




              Storage temperature
              -10 ... + 60 °C




              EMC test
              IEC 801-2/4/5, EN 55011, EN 55022








          Hydrotechnik Torque sensor Electrical connector








              Pin assignment
              4 ... 20 mA output





              Pin 1 = signal +




              Pin 2 = – Ub / signal –




              Pin 3 = + Ub




              Pin 4 = free




              Pin 5 = shield

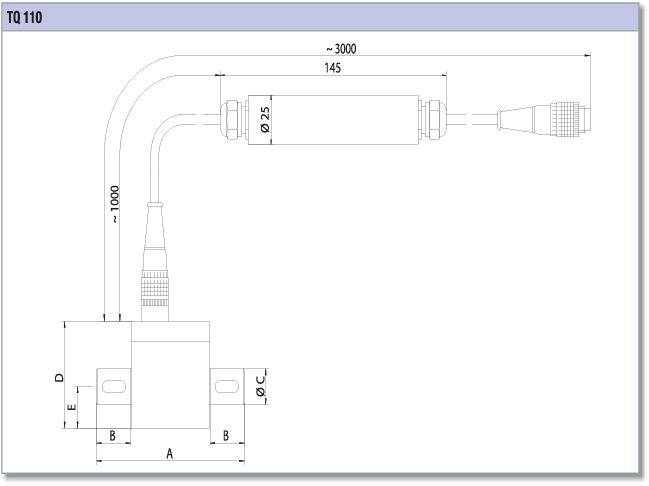

              Measuring range
              Max. cont.

                rot. speed
              Spring

                constant
              A
              B
              C
              D
              E
              Weight




              Nm
              min-1
              Nm/rad
              mm
              mm
              mm
              mm
              mm
              g




              0 ... 50
              1,500
              4.82 x 103
              90
              20
              15
              54
              21
              380




              0 ... 100
              9.85 x 103
              420




              0 ... 200
              1,000
              2.80 x 104
              95
              22
              18
              54
              21
              900




              0 ... 500
              6.33 x 104
              140
              42
              32
              68
              30









      Hydrotechnik Torque sensororder number









              Measuring range
              Max. radial load
              Inertia*
              Order number




              Nm
              N
              kg m²





              0 ... 50
              28
              1.17 x 10-5
              3183-21-0A.37




              0 ... 100
              65
              1.25 x 10-6
              3183-21-06.37




              0 ... 200
              80
              9.15 x 10-5
              3183-21-07.37




              0 ... 500
              200
              9.42 x 10-5
              3183-21-08.37
