    1. hydrotechnik

      MultiBox3060

      Hydrotechnik
      MultiBox3060 data download

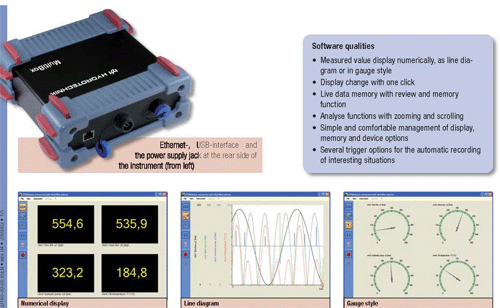

      Hydrotechnik MultiBox

      These sophisticated measuring instruments are your reliable companions for measuring tasks outside the offi ce. Protected against rough treatment,but highly sensitive for several measurands.
      Connect sensors and the USB interface – ready. The intuitive software offers professional functions for the immediate monitoring and recordingof all channels. Select the version that fi ts best for you: USB measuring box,data logger or Ethernet measuring box.

      Four analog inputs
      High-resolution A/D-converter
      Frequency input
      Two calculated channels
      Power supply via USB or external power pack
      Sensor power supply
      Internal memory (only MultiBox 3061/3065)
      Good protection against environmentalinfluences

      Hydrotechnik MultiBoxTechnical data and Order number

      Technical data MultiBox 3060 MultiBox 3061 MultiBox 3065
      Inputs 3x analog + 1x analog/frequency
      Analog input signal 0 ... 20 mA / 4 ... 20 mA
      Resolution A/D-converter 12 bit
      Input frequency 1 Hz ... 10 kHz
      Measuring rate 1 ms
      ISDS channels 4x
      Internal memory 128 MB
      Interfaces USB USB, Ethernet
      Sensor power supply 12 VDC
      MultiBox power supply 5 VDC, via USB
      ... alternatively 9 ... 30 VDC, from external power pack
      Current consumption < 500 mA < 600 mA
      Protection type IP 54 IP 40
      Dimensions (L x W x H) 114.7 x 100 x 38.4 mm
      Order number 3160-00-00.85 3160-00-00.86 3160-00-00.87
